Fire Protection Equipment Allocating Simulation Module




Hose Module (FireMarshal CAD Version)
This module is for study of most suitable hose layout on your site. You can check required space for hoses, manifolds and water pumps.
Total length of the hose is calculated automatically.

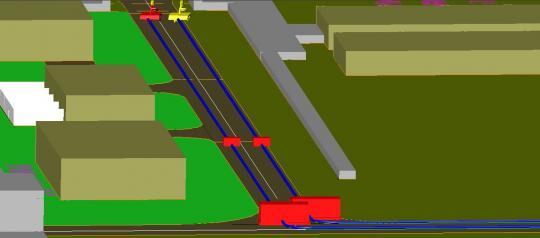

These layout is shown on the 3D graphic layout of your site.

[Features]
  1. Hose can be bended with minimum bending radius by mouse clicks.
  2. Two or more hose lines can be laid simultaneously.
  3. Hose can be shown in 3D graphics.
  4. Hose length summary for each hose diameter is shown on the dialogue, between equipment.



Typical pictures of pumps, manifolds and monitors are provided as default. If you need your own specific picture, it can be made by us with cost.

You can download the simple operation manual from the following link, which is useful for understanding the capability and ease of operation of this module.

Please feel free to contact us on the price, delivery, contract conditions, etc.





Traffic Module (FireMarshal CAD Version)

This module checks if fire engines or other emergency vehicles can pass through the road without clashing to any obstructions such as hoses etc.,

[Features]
  1. Various vehicle data including minimum turning radius are provided as default data. Of course new data can be added.
  2. Two ways can be simulated, driving along to a predetermined route and manual driving in any route.

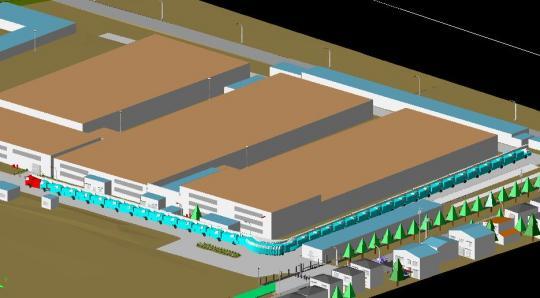

  3. Driving trace can be shown or not shown.
  4. Driving trace can be shown 2D or 3D graphics.




You can download the simple operation manual from the following link, which is useful for understanding the capability and ease of operation of this module.

Please feel free to contact us on the price, delivery, contract conditions, etc.
